Reality Capture Equipment

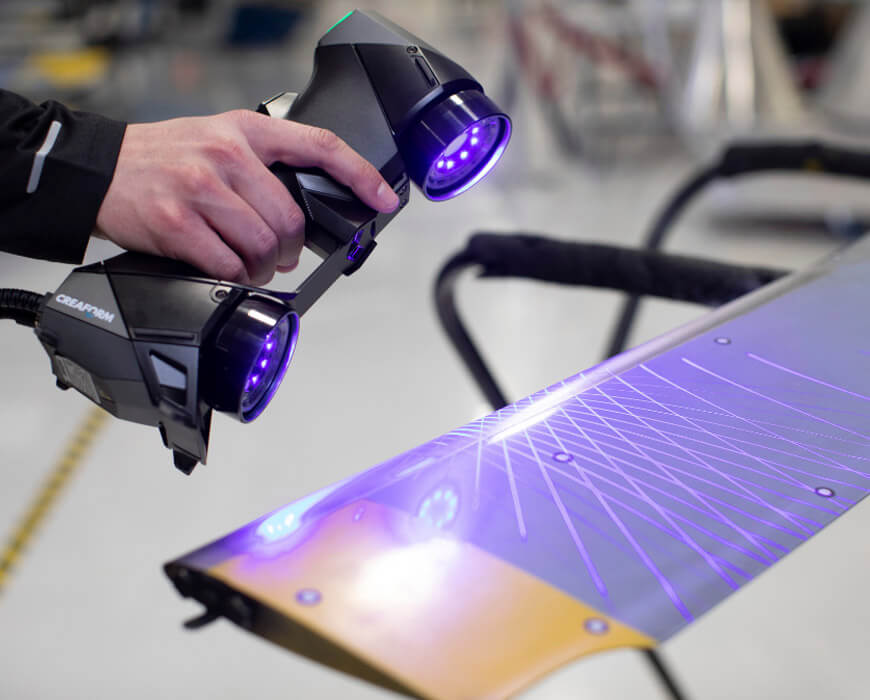

Creaform HandySCAN

Description: Metrology grade 3D scanner.

Plain English Summary: A handheld scanner that uses measurements to scan stationary objects.

Use Cases: High resolution scans, dent mapping, 3D model production of 3D printing, reverse engineering.

Stats:
  • Accuracy: 0.025mm
  • Resolution: 0.025mm

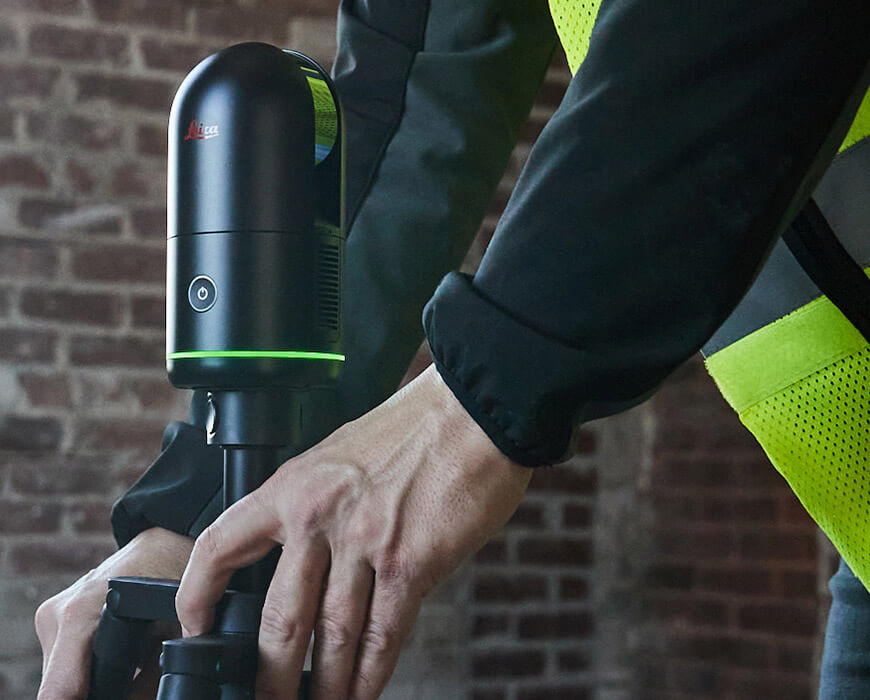

Leica BLK 360 G2

Description: A small terrestrial imaging scanner.

Plain English Summary: A compact terrestrial scanner mounted on a tripod that collects LiDAR and imagery to create a colourized point cloud. Controlled by an iPad Pro.

Use Cases: Scanning in areas traditional terrestrial scanners would not fit, photorealistic building scans, etc.

Stats:
  • Accuracy: 4mm at 10m
  • Resolution: 13 megapixels at 360 x 269
  • Range: 0.5m – 40m
Exyn Pak

Description: Handheld SLAM LiDAR unit.

Plain English Summary: A scanning system that you hold in your hand that uses light to measure and map its surrounding environment.

Use Cases: Inspections of accessible underground mines, caves, structures, ground etc.

Stats:
  • Accuracy: 3cm
  • Max Range: 100m
  • Battery Life: 3 hours

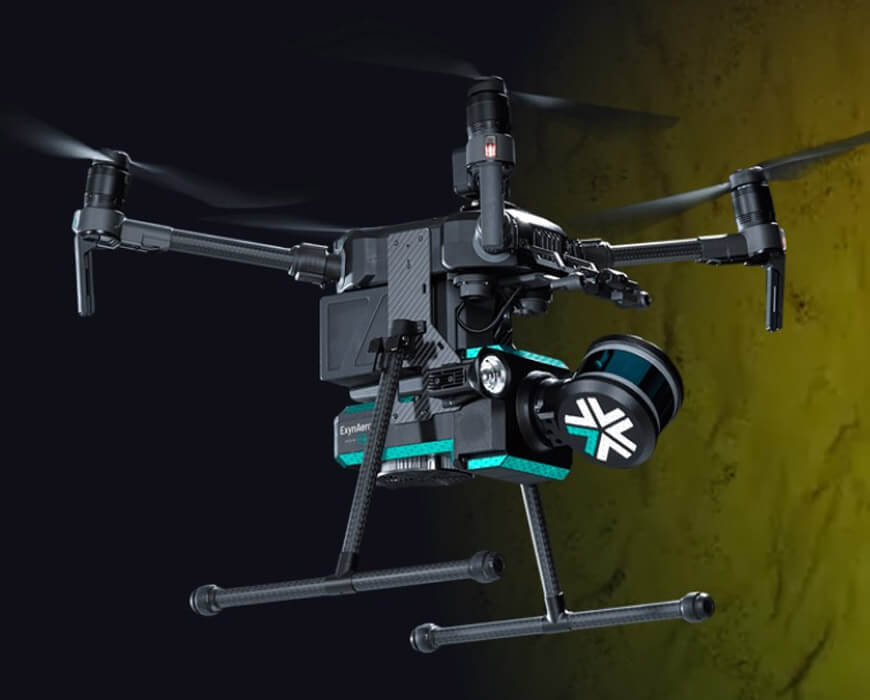

Exyn Aero

Description: Autonomous SLAM LiDAR drone.

Plain English Summary: A drone that can fly by itself and uses light to measure and map its surrounding environment.

Use Cases: Inspections of underground mines, caves, and confined spaces greater than 3m x 3m. Produces video and high-resolution 3D rendering of the scanned environment.

Stats:
  • Flight time: 9 Minutes
  • Speed: 3 m/s
  • Distance covered: 1000 m

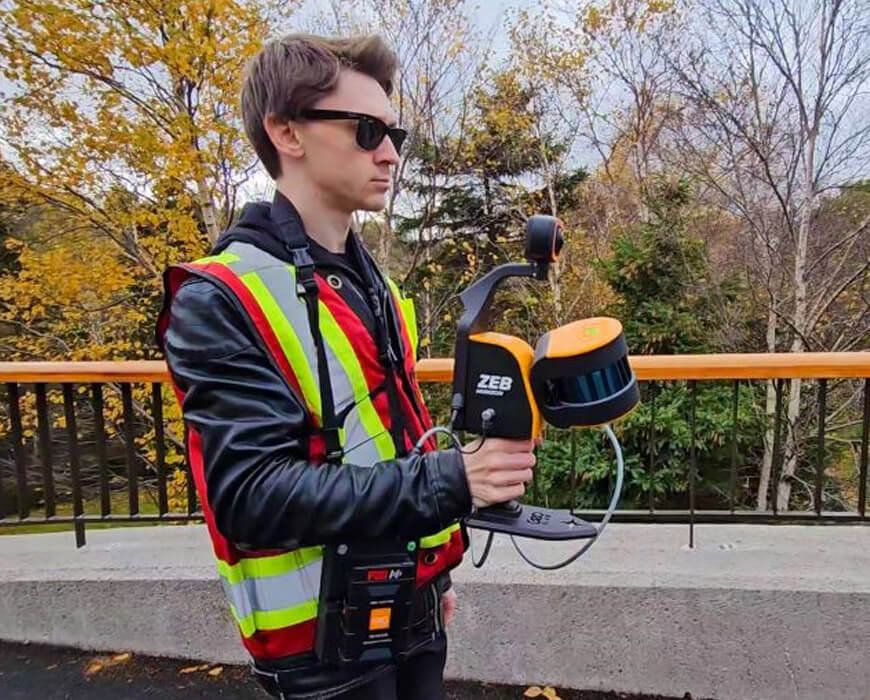

Zeb Horizon

Description: Handheld SLAM LiDAR unit.

Plain English Summary: A scanning system that you hold in your hand that uses light to measure and map its surrounding environment. Contains a panoramic camera to create a colourized point cloud.

Use Cases: Mapping indoor structures, outdoor areas, underground mines, caves, structures, ground etc.

Stats:
  • Accuracy: 2-3cm
  • Max Range: 100m
  • Battery Life: 3 hours

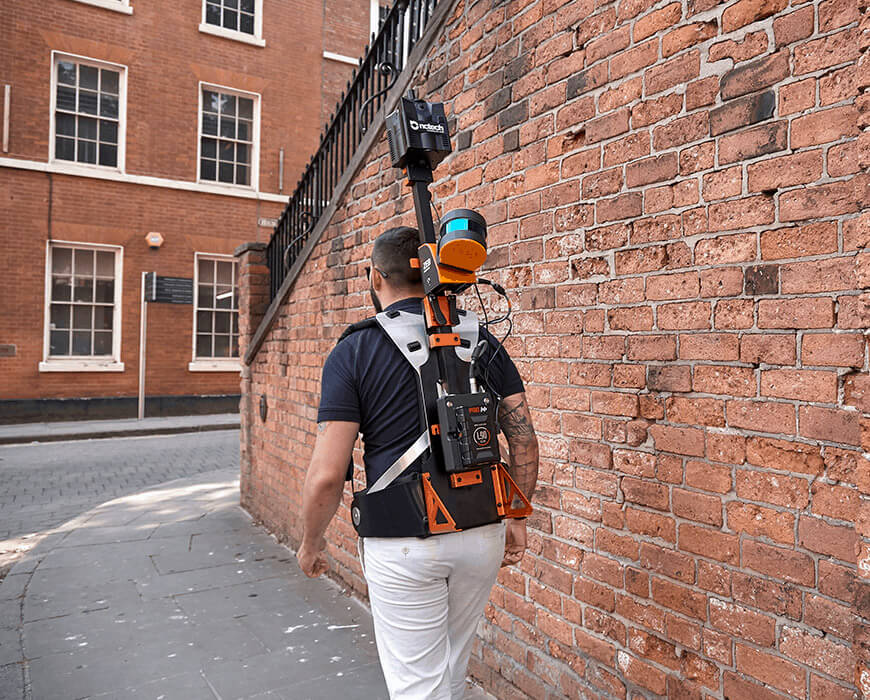

Zeb Discovery

Description: Backpack with LiDAR and Panoramic Imagery.

Plain English Summary: A scanning system that you hold on your back that uses light to measure and map its surrounding environment. Contains a panoramic camera to create a colourized point cloud.

Use Cases: Mapping indoor structures, outdoor areas, underground mines, caves, structures, ground etc.

Stats:
  • Accuracy: 2-3cm
  • Max Range: 100m
  • Battery Life: 3 hours

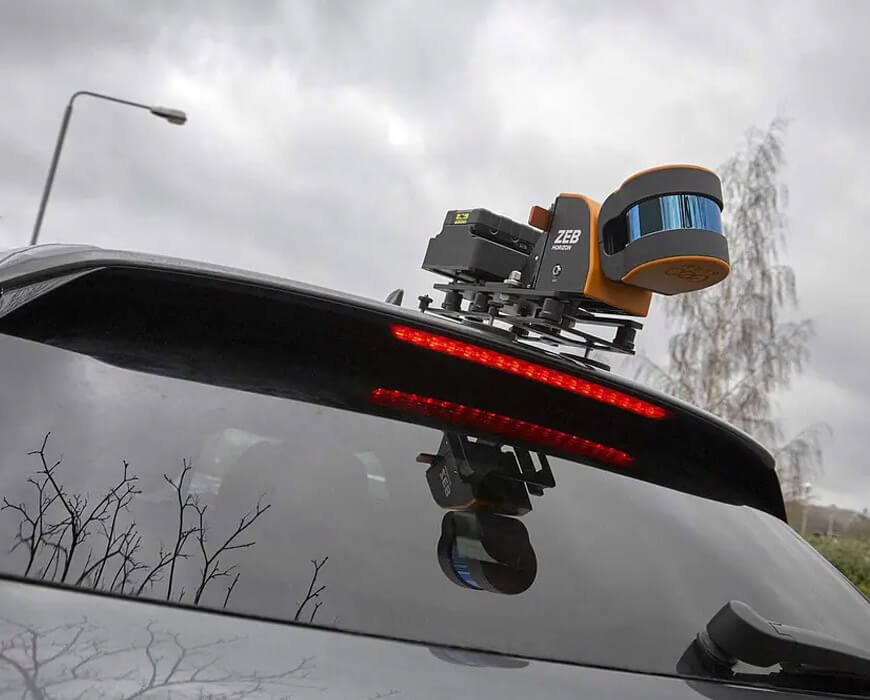

Zeb Car Mount

Description: Magnetic car mount.

Plain English Summary: Magnetic mount to attach the Zeb Horizon securely to a car for 3D mapping.

Use Cases: Town mapping, mapping longer distances that a vehicle can fit through like underground mines, etc.

Stats:
  • Weight: 4.6kg
  • Max Speed: 48 km/h
  • Range: 100m

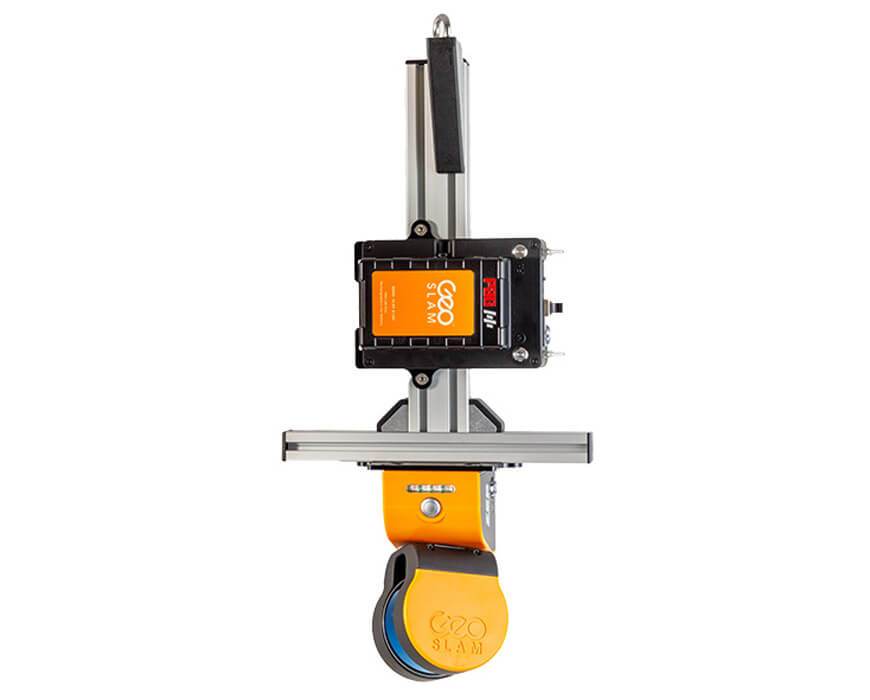

Zeb Cradle Mount

Description: Handheld Zeb Horizon mount.

Plain English Summary: Allows the user to mount the Zeb Horizon for vertical deployment underground or inaccessible areas.

Use Cases: Lower the Zeb Horizon into any inaccessible or hazardous area such as manholes, vent shafts, silos, below bridges etc.

Stats:
  • Max Depth: 250m
  • Range: 100m

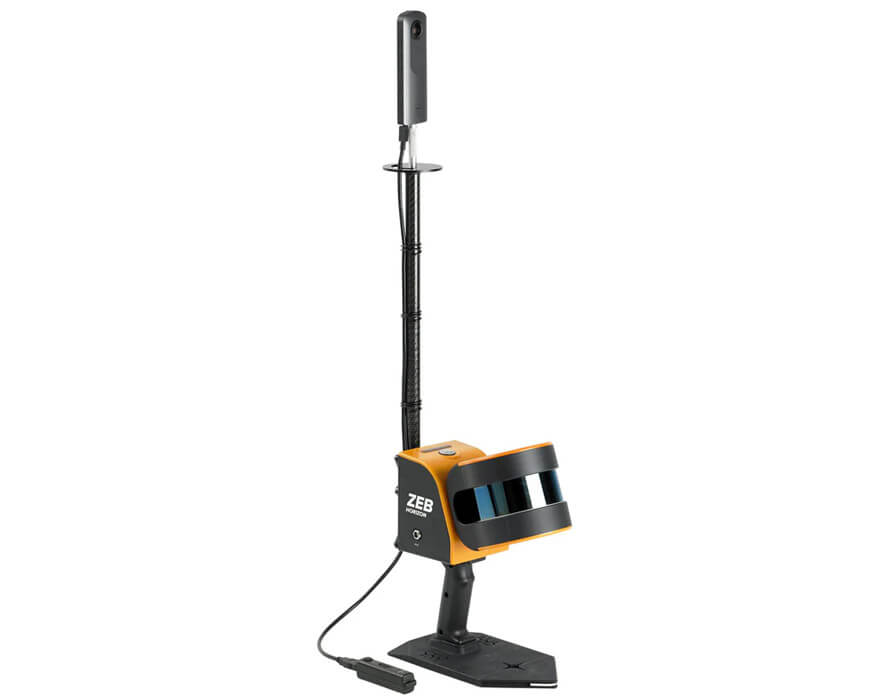

Zeb Pano

Description: Panoramic camera accessory for Zeb Horizon.

Plain English Summary: 360° panoramic camera attachment for the Zeb Horizon.

Use Cases: Virtual walkthroughs, creating real estate, creating floor plans, etc.

Stats:
  • Resolution: 6720 x 3360
  • Capture Time: 90 mins
  • Range: 30m

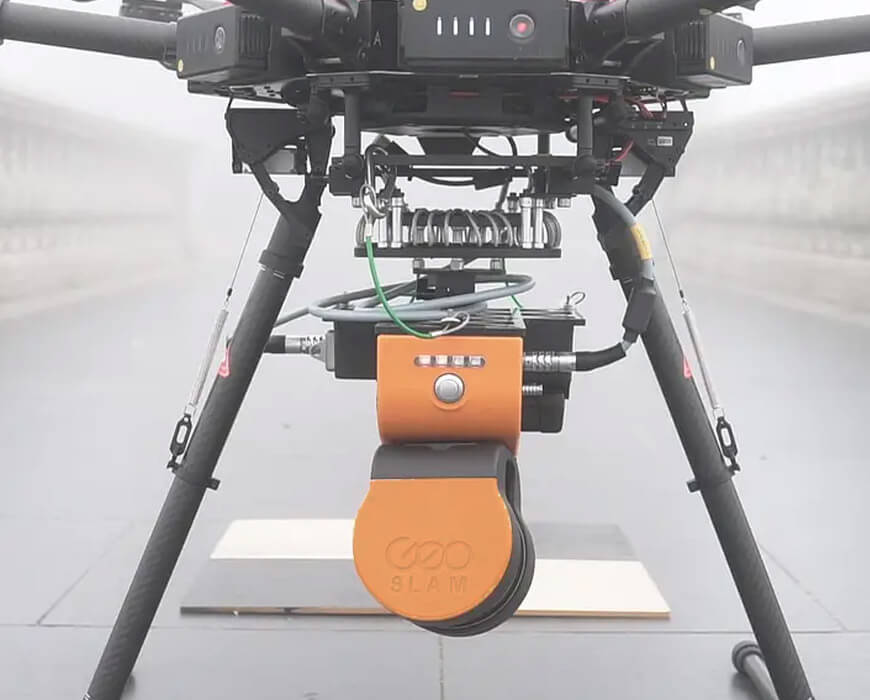

Zeb UAV Mount

Description: Mount to attach the Zeb Horizon to the DJI M600.

Plain English Summary: Allows the user to mount the Zeb Horizon to the M600 for SLAM based Aerial LiDAR applications.

Use Cases: Any aerial LiDAR applications.

Stats:
  • Max Flying Height: 40m above features
  • Max Speed: 5 m/s
  • Weight: 3.6kg with Zeb Horizon attached

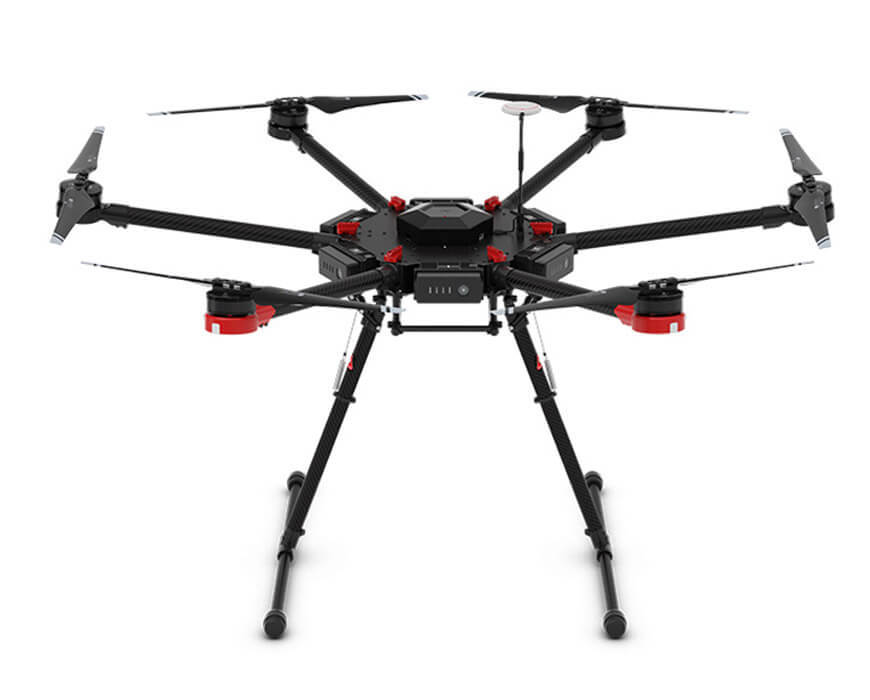

DJI Matrice 600 Pro

Description: Rotary Wing Drone.

Plain English Summary: A drone that can attach just about any sensor to it for any aerial application.

Use Cases: Can perform just about an aerial application based on the attached sensor – Topo-bathy surveys, aerial photogrammetric mapping, aerial LiDAR mapping, etc.

Stats:
  • Wind Resistance: about 30 km/h
  • Max Speed: 18 m/s
  • Flight Time: Depends on sensor (35 Minutes with no payload/16 minutes with 6kg of payload)

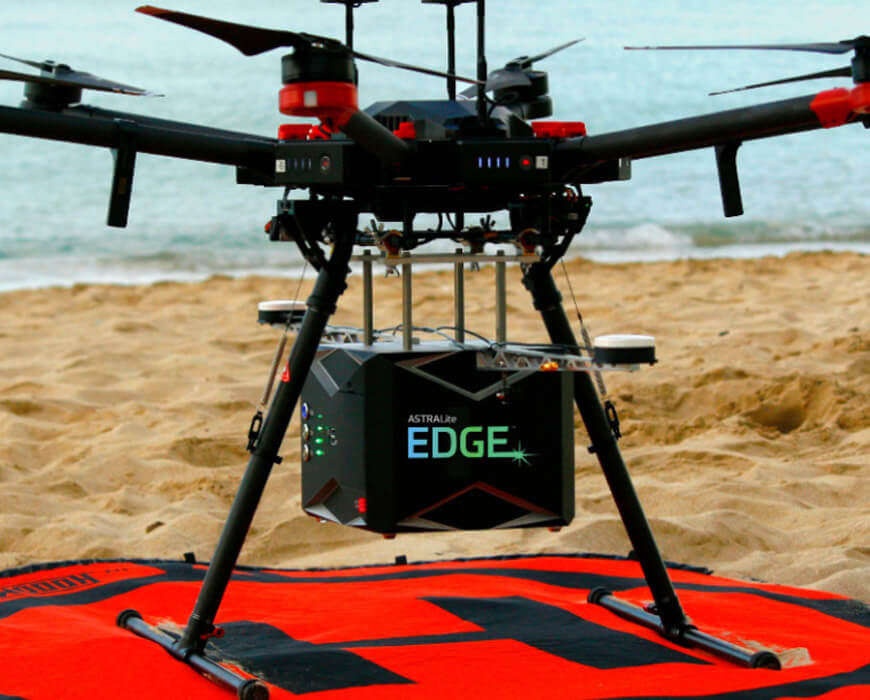

ASTRALiTE EDGE

Description: A topo-bathy LiDAR sensor that attaches to the DJI M600.

Plain English Summary: A sensor that collects both topographic and bathymetric data from above while attached to a drone.

Use Cases: Coastline mapping, river mapping, measuring underwater features, object detection underwater, etc.

Stats:
  • LiDAR Accuracy: 1cm
  • Position Accuracy: 2cm
  • Weight: 5kg
  • Flying Height: Topo: 40m, Bathy: 20m

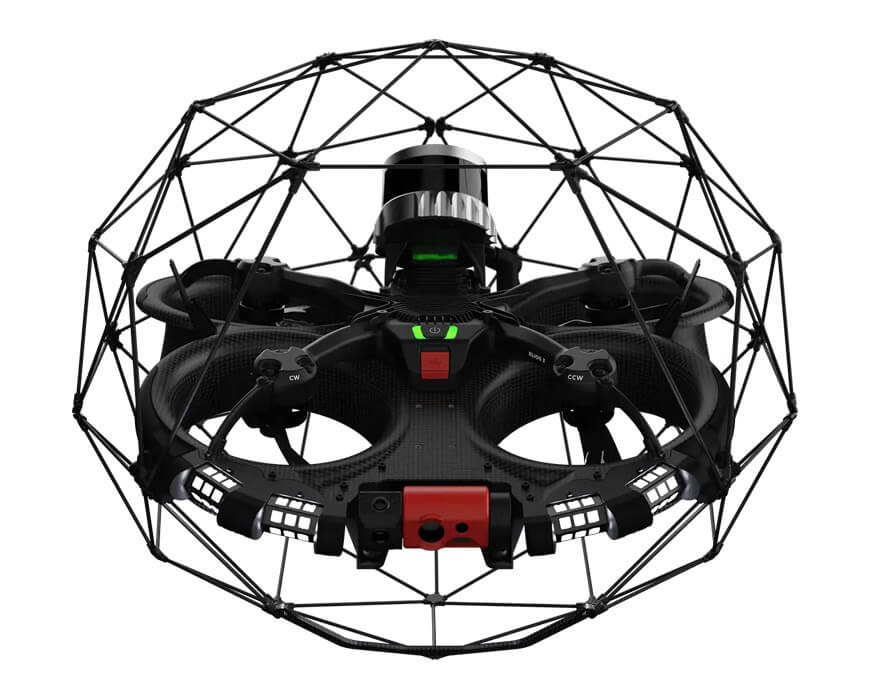

Flyability Elios 3

Description: Rotary Wing Inspection Drone.

Plain English Summary: A rotary wing inspection drone with an RGB camera, LiDAR puck, and a thermal camera, all inside a cage to avoid damage when hitting objects.

Use Cases: Mapping areas too small/unsafe for humans or drones to go into such as medium sized mine escape shafts, identifying heat leaks in areas, asbestos infested buildings, etc

Stats:
  • Max Speed: 7 m/s
  • Wind Resistance: 25 km/h
  • Flight Time: 9 mins
  • Thermal Resolution: 160 x 120 at 9fps
  • Video Resolution: 4k Ultra HD: 3840 x 2160 at 30 fps
  • LiDAR Accuracy: up to 2cm

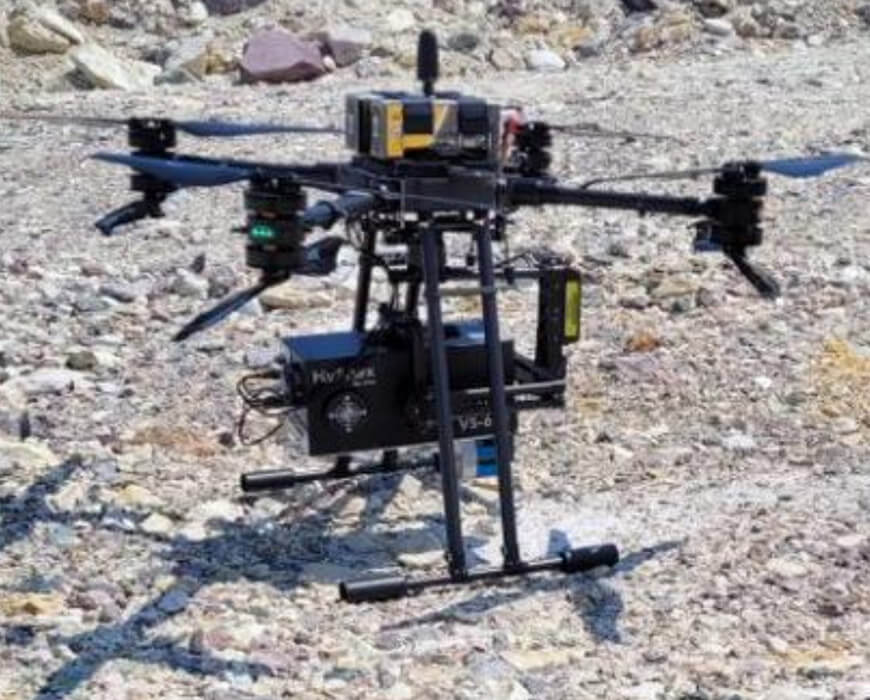

Hercules 8x with Mjolnir Camera

Description: Rotary Wing drone with Hyperspectral camera.

Plain English Summary: A rotary wing drone with a hyperspectral camera attached to collect aerial hyperspectral data.

Use Cases: Any aerial hyperspectral applications including tailings pond monitoring, forest health assessment, soil analysis, etc.

Stats:
  • Wind Resistance: 20 km/h, gusts of 30 km/h
  • Flight Time: 14 mins
  • Ground Resolution: 2.34cm
  • SWIR Lens: 970 to 2500 nm, 300 bands, 620 pixels, max 250 fps
  • VNIR Lens: 400 to 1000 nm, 200 bands, 1240 pixels, max 1080 fps

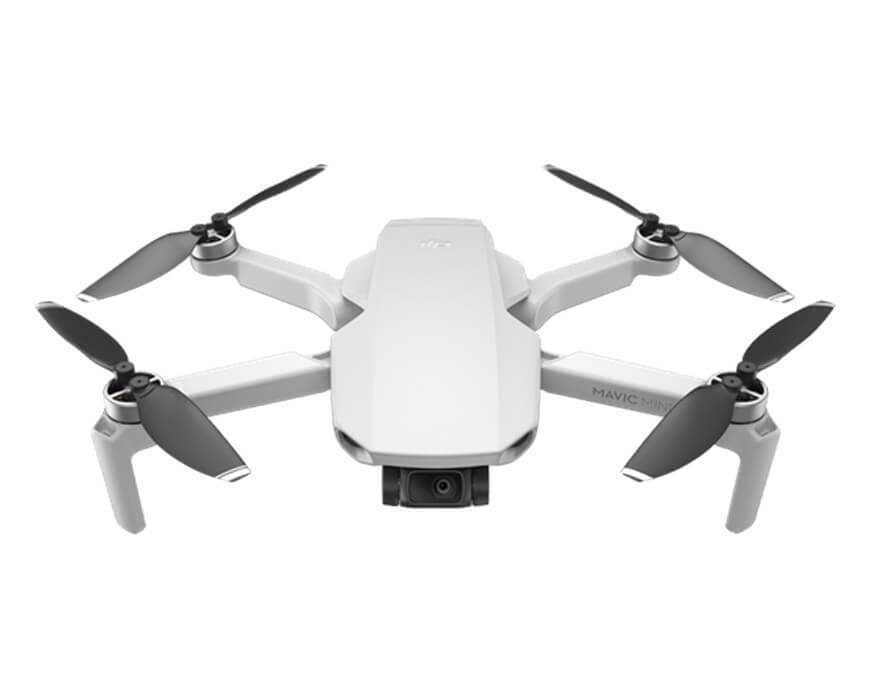

Mavic Mini

Description: 249g rotary wing drone with camera.

Plain English Summary: A small rotary wing drone that takes videos while being controlled by a remote control.

Use Cases: Drone pilot training, aerial videography, basic aerial mapping.

Stats:
  • Max Speed: 13 m/s
  • Wind Resistance: about 30 km/h
  • Flight Time: 30 mins
  • Video Resolution: 2.7K: 2720×1530

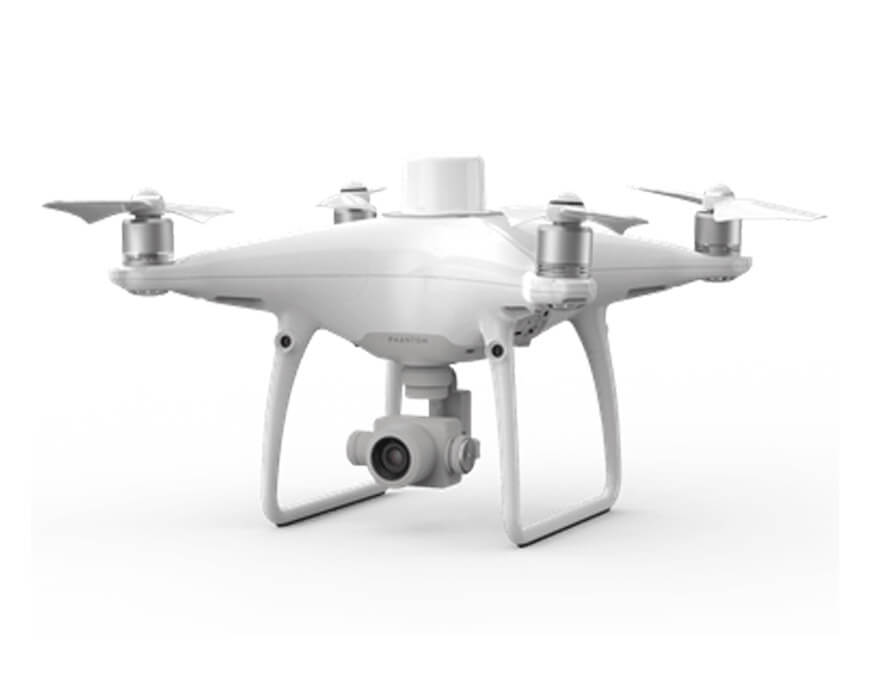

DJI Phantom 4 RTK

Description: Rotary Wing Drone.

Plain English Summary: Photogrammetry rotary wing drone that can georeference data without aerial targets if used with an RTK base station.

Use Cases: Basic aerial photogrammetry for surface modelling, oblique imagery, base map creation, etc.

Stats:
  • Max Speed: 13 m/s
  • Wind Resistance: about 35 km/h
  • Flight Time: 30 mins
  • Accuracy: Horizontal: 1cm + 1ppm, Vertical: 1.5cm + 1ppm
  • Photogrammetric Accuracy: 5cm

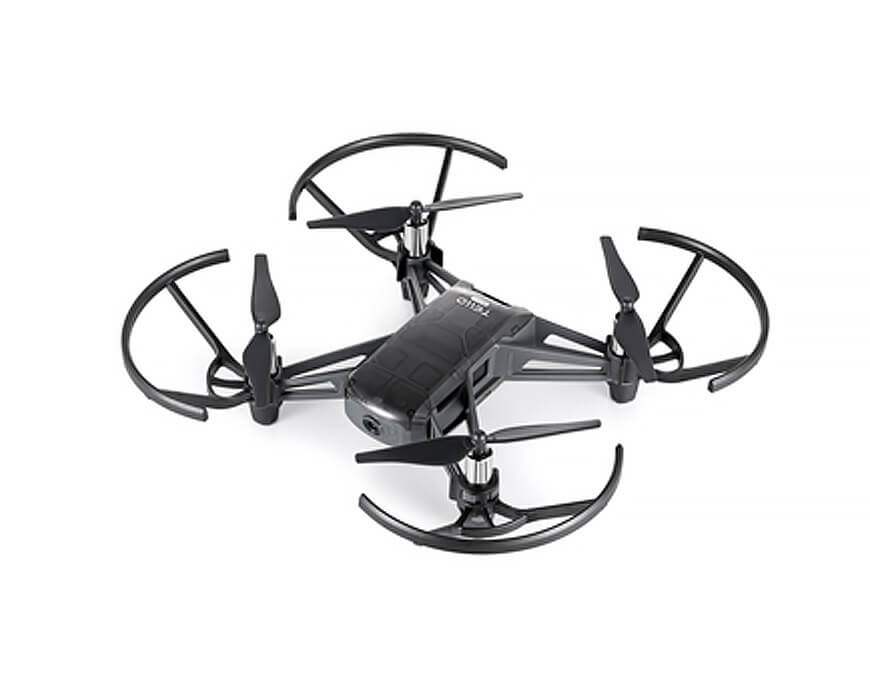

Tello Edu

Description: < 250g programmable rotary wing drone.

Plain English Summary: A small, remote control rotary wing drone with a video camera that can be programmed to fly on its own.

Use Cases: Basic drone mapping and drone pilot training.

Stats:
  • Flight Distance: 100m
  • Flight Time: 13 mins
  • Video Resolution: 720p HD
  • Photo Resolution: 5 megapixel

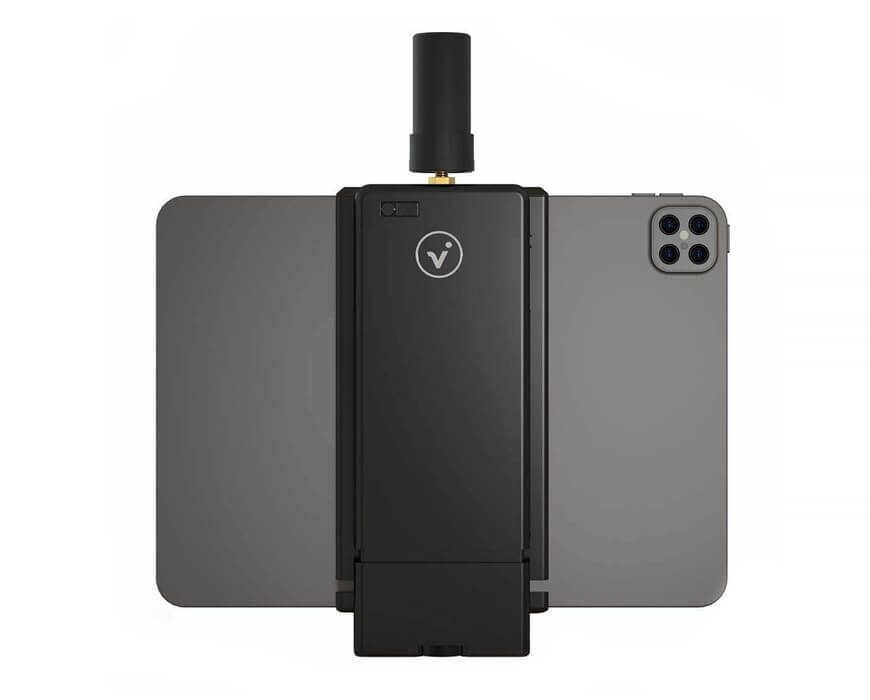

ViDoc RTK

Description: RTK Rover Attachment for the iPad Pro.

Plain English Summary: Attaches to an iPad Pro to georeferenced the images and LiDAR collected with the iPad’s camera.

Use Cases: Easily georeferencing scans of objects such as cars, fire hydrants, buildings, etc.

Stats:
  • Height Limit: 5m
  • Accuracy: <2cm

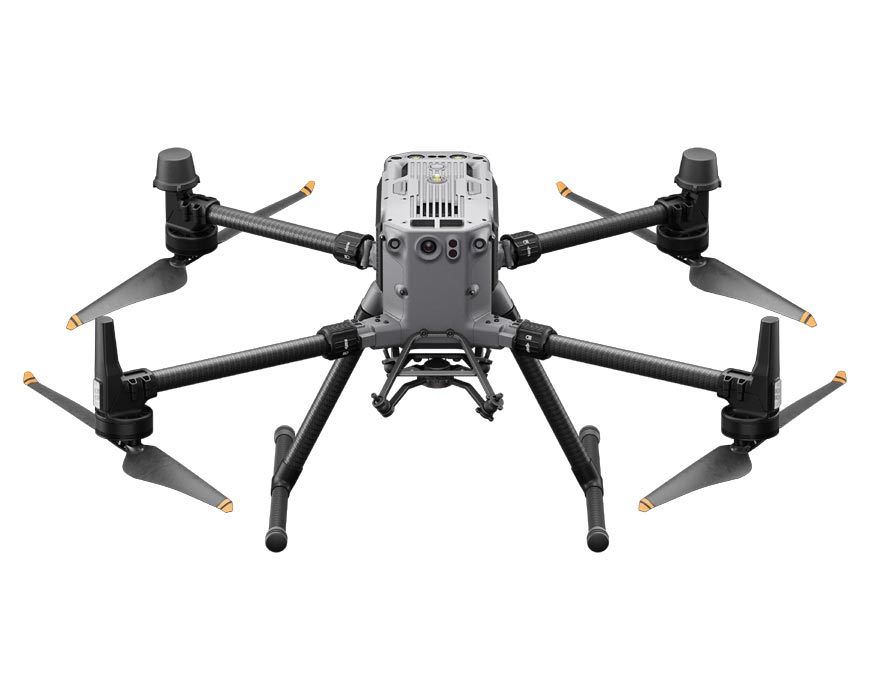

DJI Matrice 350 (M-350)

Description: 6.47 kg rotary wing drone

Plain English Summary: Rugged, industrial-grade drone for mapping, inspections, and search and rescue. Features long flight times, advanced obstacle avoidance, and compatibility with various payloads.

Use Cases: Aerial mapping, infrastructure & asset inspections, public safety & search and rescue, environmental monitoring, precision agriculture.

Stats:
  • Max Speed: 23 m/s
  • Wind Resistance: 12 m/s
  • Flight Time: 55 mins
  • Operating Temp: -20 – 50°C

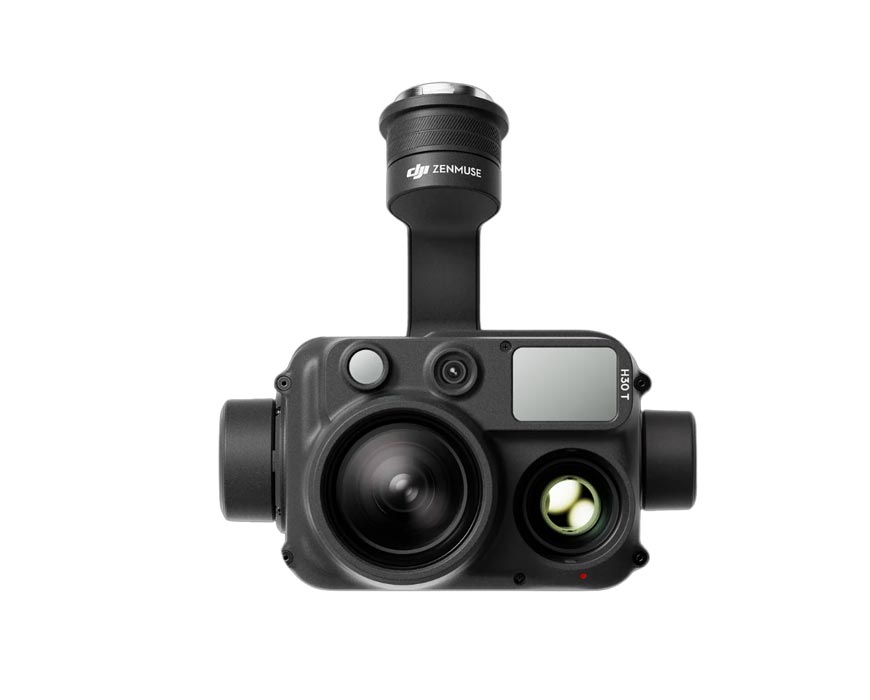

DJI H30T Camera

Description: Zenmuse H30T M-350 Multi-Sensor Camera Payload

Plain English Summary: High-performance camera for the Matrice 350 drone. Combines zoom, wide-angle, thermal imaging, and laser rangefinder.

Use Cases: Search & rescue, public safety & law enforcement, firefighting, infrastructure inspections, environmental & wildlife monitoring.

Stats:
  • Zoom Camera: 40MP sensor, 34× optical zoom, 400× digital zoom
  • Wide Camera: 48MP, 85° FOV
  • Thermal Camera: 1280 × 1024
  • Laser Rangefinder: Up to 3000m

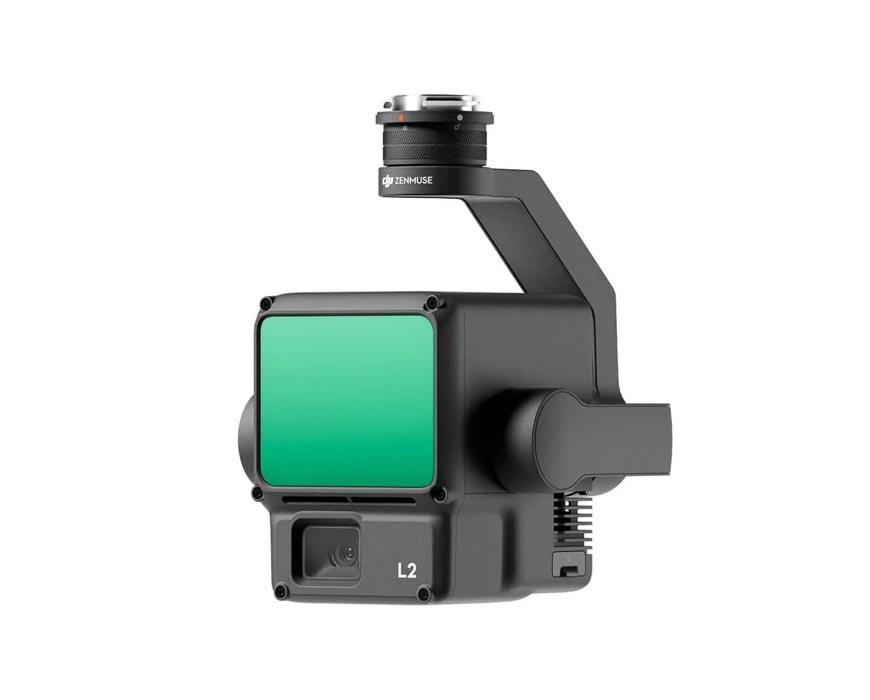

DJI L2 LiDAR

Description: Zenmuse L2 LiDAR M-350 Payload

Plain English Summary: High-precision LiDAR sensor for aerial mapping and 3D modeling. Captures detailed elevation data through vegetation for accurate terrain models.

Use Cases: Land surveying & mapping, forest management, construction & infrastructure planning, archaeology, disaster response & risk assessment.

Stats:
  • Laser Type: 905 nm LiDAR
  • Point Accuracy: 1 cm + 0.1 ppm (horizontal), 2.5 cm + 0.1 ppm (vertical)
  • Point Cloud Density: Up to 240,000 points/sec

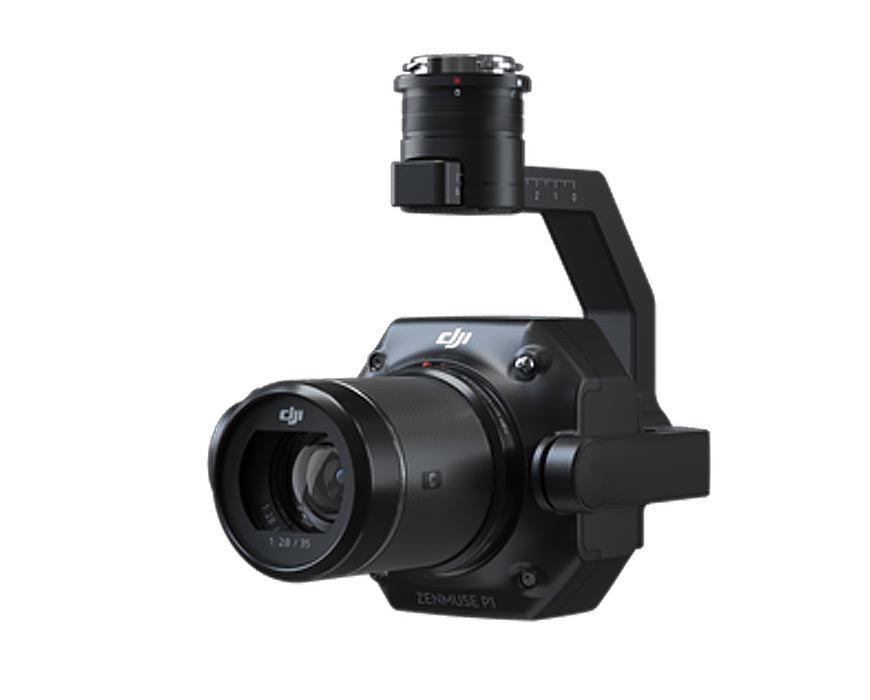

DJI P1 Camera

Description: Zenmuse P1 Photography Camera M-350 Payload

Plain English Summary: High-res, full-frame camera for aerial photogrammetry. Captures sharp, detailed images for 2D maps and 3D models. Efficient for large-scale surveying.

Use Cases: Aerial surveying & mapping, construction & infrastructure planning, agriculture & land management, urban planning, disaster response & recovery.

Stats:
  • Sensor: Full-frame, 45 MP CMOS
  • Lens Options: 24mm, 35mm, 50mm
  • Shutter Speed: 1/2000s
  • Image Capture Rate: 0.7s/photo
  • GNSS & IMU Integration: High-precision positioning

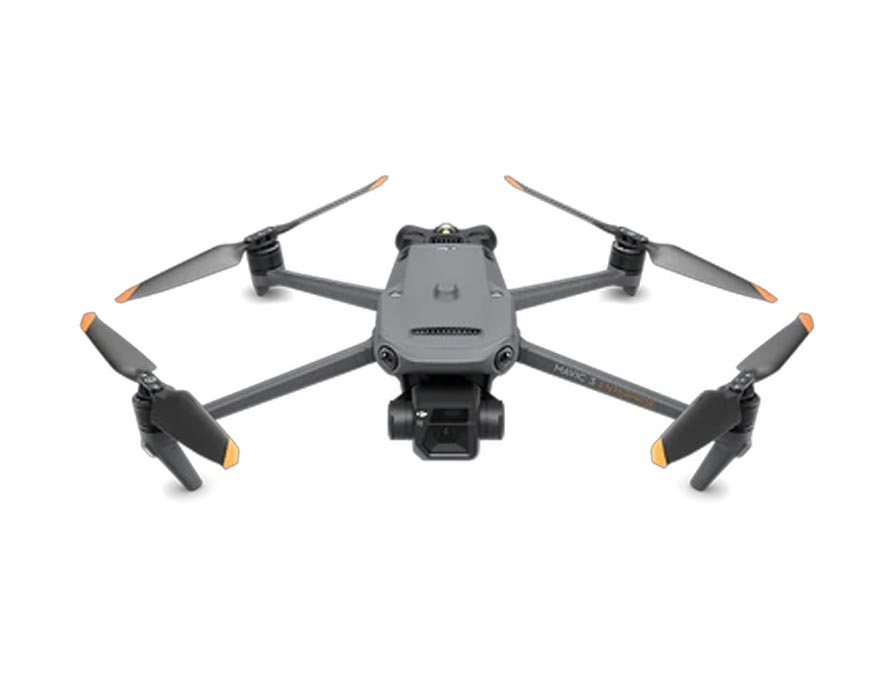

Mavic 3 Enterprise

Description: 1050g rotary wing drone with camera

Plain English Summary: Small rotary wing mapping drone with mechanical shutter, large CMOS sensor and telephoto camera.

Use Cases: Aerial mapping, DEM creation, reconnaissance.

Stats:
  • Max Speed: 21 m/s
  • Wind Resistance: 12 m/s
  • Flight Time: Up to 45 min
  • Wide Camera: 20 MP (4/3 CMOS)
  • Tele Camera: 12MP 56X Hybrid Zoom
  • Video Resolution: 4K at 30fps

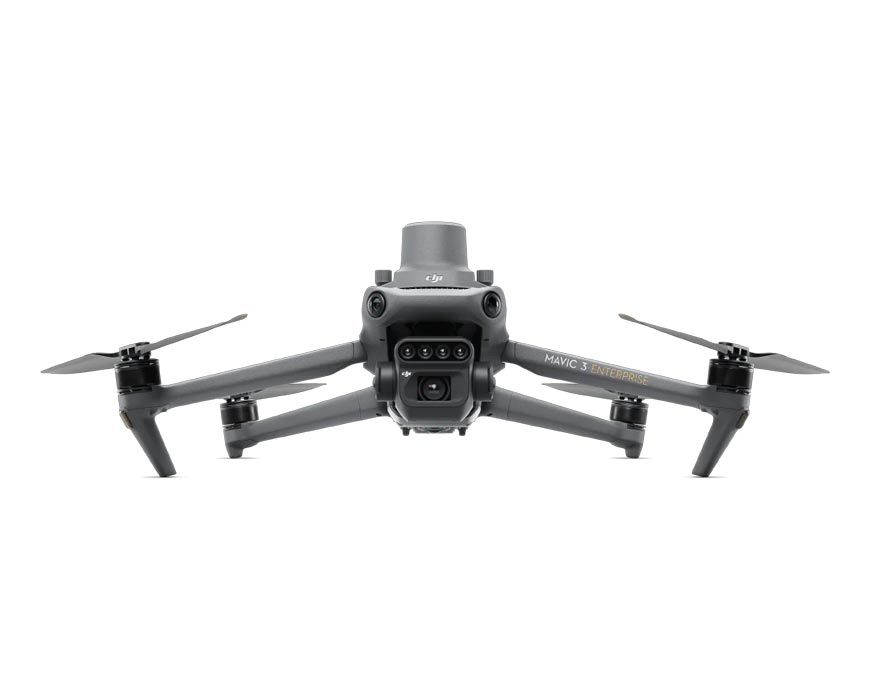

Mavic 3 Multispectral

Description: 1050g rotary wing drone with multispectral and wide-angle cameras

Plain English Summary: Small drone specialized for agricultural and environmental applications with multispectral capabilities.

Use Cases: Aerial mapping, DEM creation, reconnaissance.

Stats:
  • Max Speed: 21 m/s (Level Flight)
  • Wind Resistance: 12 m/s
  • Flight Time: Up to 43 min
  • RGB Camera: 20 MP (4/3 CMOS)
  • Multispectral Cameras: 5 MP (Green, Red, Red Edge, Near-Infrared)
  • Video Resolution: 4K at 30fps
